Precision 2K Dispensing with Disposable Static Mixing – No Recharge Required
The volumetric two-part (2K / bi-component) mixing pump utilizes advanced Progressive Cavity Displacement (PCD) technology to deliver highly accurate, repeatable dispensing of mixed materials. Engineered for performance and reliability, the system ensures precise volumetric flow of components A and B through a disposable static mixer, eliminating cross-contamination and simplifying maintenance.

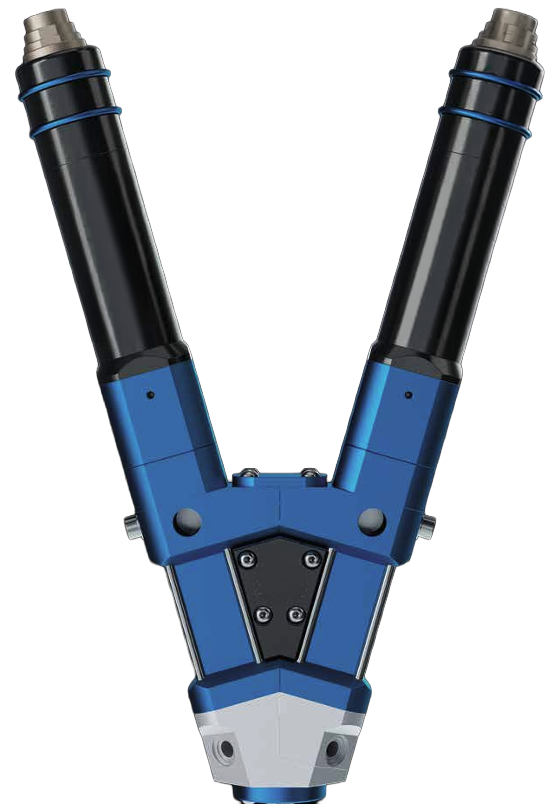

Volumetric Two-Part Mixing Pump
Volumetric Two-Part Mixing Pump Key Features
True Volumetric Dispensing
Precisely meters and delivers both components by volume for consistent mix ratios and repeatable results.
Valve-Free Mixing Head
Reduces complexity and maintenance while eliminating potential leak paths.
Disposable Static Mixer
Mixing occurs exclusively within the static mixer—the only wetted component—available in multiple sizes and lengths to suit various applications.
No Recharge Required
Unlike piston-based systems, continuous operation is achieved without refill cycles, improving uptime and efficiency.
Reverse Flow (Suck-Back) Capability
Prevents dripping and stringing for clean shut-off and improved process control.
Wide Viscosity Range
Capable of processing low- to high-viscosity materials with consistent output.
Constant Volume Output
Maintains accuracy even with temperature fluctuations or material batch variations.
Advanced Dispensing Technology
The system operates by transferring sealed, uniform cavities of fluid through a progressive displacement mechanism. This design enables:
High dispense rates
With smooth, continuous flow
Gentle material handling
Ideal for abrasive or filled materials
Extended component life
As materials are pushed rather than sheared
The pump core consists of a Precision stainless steel rotor operating within a high-durometer elastomer stator, ensuring durability and consistent performance.

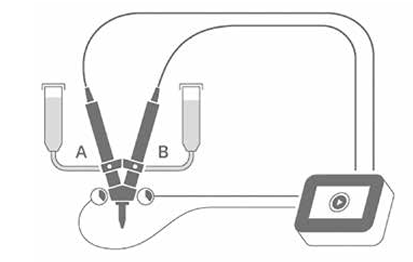

Graphic above shows self-leveling liquid, low viscosity material
Flexible Performance, Built for Your Process
Servo-driven pumps
With output up to 32 ml/min per pump (configuration dependent)
Adjustable mix ratios
Via independent pump speed control:
Standard: 1:1, 2:1
Fine-tuned ratios: 1.1:1, 1.3:1
Extended capability: up to 10:1
Programmable volume and flow rate
For flexible process control
Analog input (0–10VDC)
For proportional speed control via external devices
Material Compatibility
Suitable for a broad range of two-component materials, including:
Adhesives and sealants (filled or unfilled)
Encapsulation and potting compounds
Gasketing and bead applications
Dot dispensing and cavity filling
Compatible with systems based on:
Epoxy (EP)
Polyurethane (PU)
Silicone (Si)
Methyl Methacrylate (MMA)
Seamless Integration into Any Production Line
The design allows easy integration into:
Tabletop dispensing systems
Robotic platforms
Fully automated production lines
Integration features include:
Simple 24VDC trigger signal for dispensing
Quick mechanical mounting with four central mounting points
No special tooling required
The system supports standard syringes (10–55 cc) or bulk material feed, offering flexibility for different production environments.

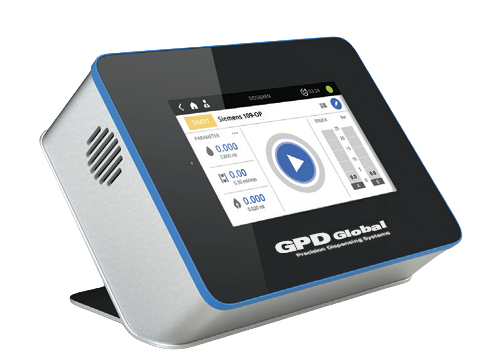

Volumetric Two-Part Mixing Pump Controller
Programmable Controller
The intuitive controller provides complete control over dispensing parameters:
Store up to 24 dispensing programs
Adjust mix ratio and pump calibration for precise output
Navigate easily via a user-friendly interface
Enable programmable reverse (suck-back) to eliminate dripping
The controller seamlessly interfaces with robots and external systems, allowing synchronized operation with sensors, flow meters, and motion platforms.
Volumetric Two-Part Mixing Pump Applications
Ideal for precision metering, mixing, and dispensing in:
