Accuracy & High Speed Solder Paste Jetting Equipment
UltraMAX

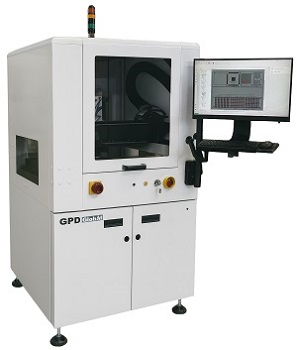

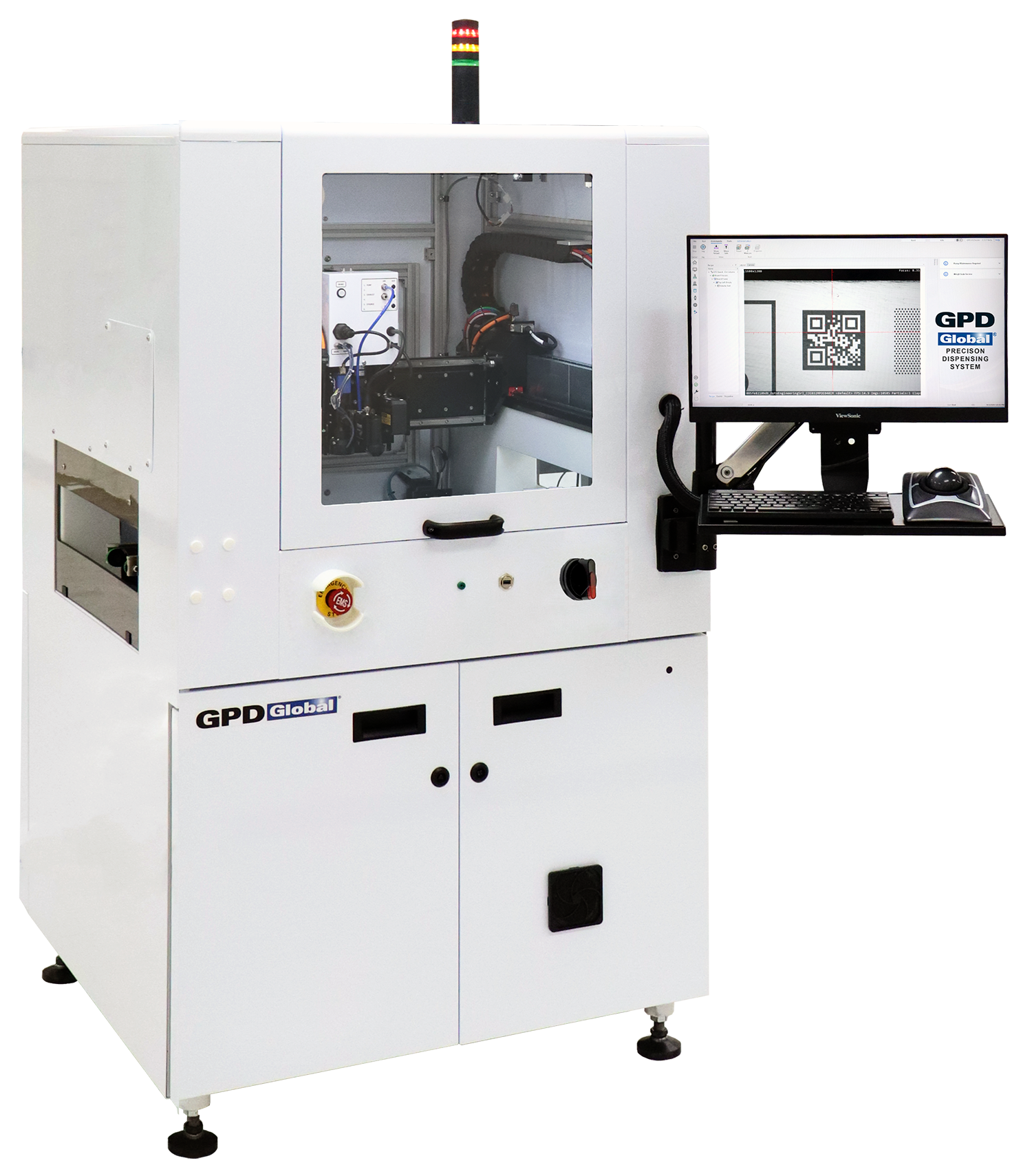

The UltraMAX™ is a next‑generation high‑speed solder paste jetting dispenser engineered to deliver exceptional performance across a wide range of advanced fluid dispensing applications, including:
Solder Paste
Conductive Adhesive
SMT Adhesive
LED Encapsulation
Potting Compounds
…and many more
Why UltraMAX?
Unmatched Stability and Accuracy
At the core of the UltraMAX™ system is a robust, molded unibody frame that ensures extraordinary mechanical stability and consistent jetting precision. Designed for demanding electronics manufacturing environments, UltraMAX™ combines innovation and durability to deliver unmatched dispensing accuracy—even at maximum throughput.
Built for Efficiency and Flexibility
Powered by Windows 11
DFX and Gerber File Import
Pre‑Configured Component Library

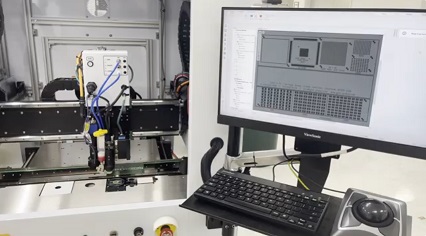

Real‑Time On‑Screen Process Visualization
Bad Board Exclusion Using Fiducials and Bad Marks
Automatic Conveyor Width Adjustment
Built‑In Optimization & Cycle Time Management Tools
SECS/GEM Communication Compatibility
Intuitive Recipe Creation with User‑Friendly Programming
Standard Features
Every UltraMAX™ system comes equipped with a comprehensive suite of automation and precision tools:
Customize and enhance your dispensing process with optional upgrades:
External Process View Camera
Up-Looking Camera for Nozzle Tip Inspection
Precision Weight Scale for Pump/Process Calibration
FPC for Real-Time Pump Process Control
Uninterruptible Power Supply (UPS)
Offline Programming Tools
Clean-Room Compatibility Package
Extended Warranty Options
Service & Maintenance Contracts
Integrated Ionizer for Static Mitigation

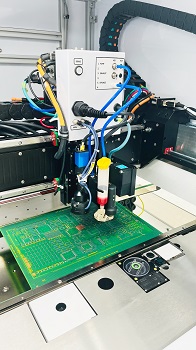

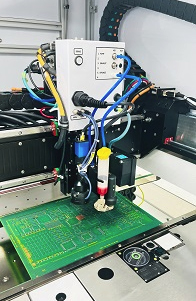

UltraMAX Gantry
System Configurations
UltraMAX™ automated dispensing systems are available in both stand-alone and inline configurations, giving you the flexibility to meet your production and layout requirements.
Stand‑Alone Automated Dispensing System
Engineered for versatility and precision prototyping or medium‑volume production:
Durable 14″ × 14″ (355 mm × 355 mm) anodized aluminum work table
Vacuum hold‑down to secure substrates during processing
Standard board crowders to position products against fixed rails
Inline High‑Precision Dispenser
Designed for high‑volume, fully automated SMT production environments:
Single‑station conveyor
SMEMA‑compatible communication with upstream and downstream equipment
Configurable 3 mm or 5 mm edge‑belt transport
Custom edge‑belt options available for specialized applications
