Peel Back Force Tester

Precisely measure the peel back force of carrier tape to verify your packaging systems are within specification. Results can be printed and stored with the outgoing product.

  • Variable Speed with Windows compatible (Windows 10 Pro/11 Pro operating system) SPC software package.
  • Measures peel force strength of cover tape on SMT component carrier packaging.
  • Correct peel force strength provides compatibility with SMT Pick & Place systems.
applications overview video thumbnail
PBFT in action – video.

Peel Back Force Tester Standard Features

  • Variable speed with SPC software.
  • Meets EIA, EIA-J, and IEC specifications.
  • High accuracy Strain Gauge.
  • Two models of packaging width test capability: 8 to 56 mm and 8 to 120 mm
  • 100 mm to 600 mm per minute speed; selectable in 50 mm increments.
  • GPD Global FORCEWare software software with comprehensive SPC Software Package included.
  • CE approved.

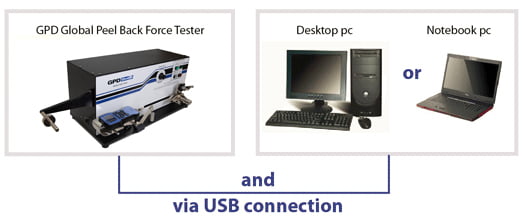

Desktop or Notebook Capability

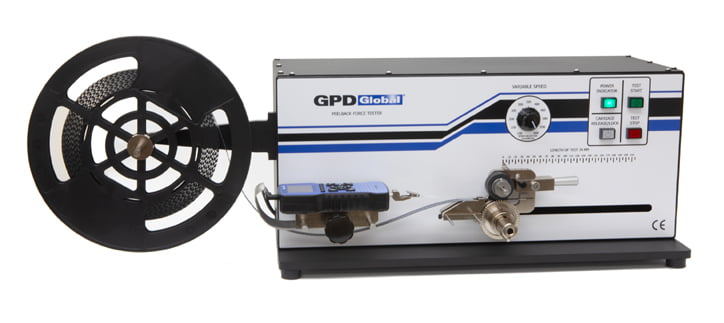

Model PBFTVS.USB1100 includes a Tape Peel Back Force Tester with GPD Global’s FORCEWare software and SPC for Windows 10 Pro/11 Pro operating systems (32-bit or 64-bit) operating system for use on a desktop or notebook computer utilizing USB specification 2.0 or greater.
