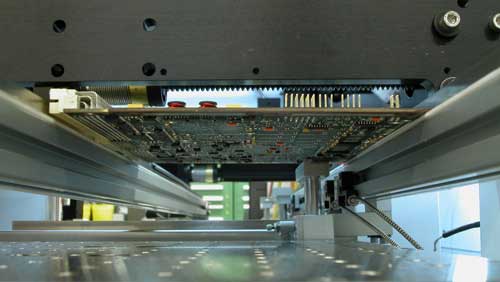

High Precision Dispensers – MAX II

For Heated Applications

MAX II high precision dispensers incorporate all the features of a MAX base system plus these heated features:

  • heat capability in the work area
  • an optional nozzle and/or material heat

These high precision dispensers process heated applications such as:

  • Underfill
  • Dam and Fill
  • COB Encapsulation
  • and more

Substrate Heating Methods

Convection/Forced Air – Heat transfers to the product via air flow from below the board. Use this method when bottom-side features make contact fixturing difficult.

convection / forced air entrance
Convection / Forced Air

Contact – Heat rapidly transfers to the product through direct contact with the product. In most cases, vacuum is incorporated to pull product to the heated surface for uniform heat transfer.

Work Table Configurations

MAX II systems are available in either stand-alone or inline configurations.

Stand-alone Heated Work Table

A stand-alone, heated, work table functions the same as a non-heated work table. The heated plate in the work table generates a maximum surface temperature of 200 degrees C.

A forced air feature is available; it includes raised rails. The raised rails allow forced air to evenly contact the bottom side of the substrate.

Heated Dispensing Systems Equipment
Heated Worktable with Vacuum

The work table may also incorporate vacuum. Vacuum ports in a 25.4 mm (1″) matrix over the entire work table hold product during processing. Each vacuum port has a plug, removal of which generates localized vacuum. If port locations are unsuitable for your product, a custom overlay can be placed on the work table to apply vacuum where needed.

Inline Heated Work Table

When inline applications require heat, system configuration includes a conveyor with three heated zones: pre-heat, work area, and post-heat. Heating in all 3 zones makes for a complete process.

3-Zone Heated Conveyor
3-Zone Heated Conveyor
equipment with 3 heated zones
3-Zone Heated MAX II with pre-heat and post-heat pods

The 3 Zones of a Heated Conveyor

Pre-Heat – Preheating raises the product up to operating temperature. More aggressive heating may be applied to this zone to decrease the amount of time required to bring product up to temperature.

Work Area Heat – Work area heating normalizes heat on the substrate. Heat in this zone is typically applied via a contact vacuum fixture for utmost uniform heat transfer.

Heated Vacuum Fixture
Heated Vacuum Fixture

Post-Heat – Post heating is typically used to maintain product temperature and continue fluid flow. Heating may be forced air or contact fixturing.

Add-On Options

TempView Thermal Imaging System – An optional thermal imaging system monitors the temperature of various devices/components to ensure uniform flow of fluid during the process.

example of temperature view
Heat Patterns
TempView mounted on machine
TempView mounted on a system

Heated Pump Body – An optional body heater is available for most of our dispense pumps. A body heater helps stabilize fluid viscosity, thus improving dispense results for heated applications.

Heated Syringe – An optional reservoir heater is available for dense fluids that may require extra time to achieve desired temperature. This heater interfaces with most GPD Global dispense pumps.

Pump Compatibility


Pumps / Accessories

Dam and Fill or abrasive fluids.

Precision Auger Pump

Low viscosity, high speed underfill.

Jetting Pump (NCM5000)

Large volume underfill application or encapsulation.

Volumetric Pump (PCD)

Real time process control.

Fluid Pressure Control (FPC)
