Fluid Dispensing for Large PCB, Pallets

Large PCB or Pallets Fluid Dispensing

GRAND JUNCTION, CO USA ― April 2017 ― GPD Global, a manufacturer of precision fluid dispensing systems for high-volume 24/7, low-volume/high-mix, and R&D production, offers versatile large format inline dispensing systems and stand-alone liquid dispense technologies for maximizing product yield. This is the largest standard PCB dispensing system platform in the industry.

Inline and Stand-Alone Fluid Dispensing for Large PCB, Pallets

The inline and stand-alone DS Series System for large PCB or Pallets dispensing delivers uncompromising quality and versatility for demanding liquid dispensing applications. With a standard, large work area up to 24″ x 24″ (610 mm x 610 mm) and an optional increment feature to handle boards 36″ (914 mm) and larger, the platform is excellent for larger format projects. DS Series handles up to three dispense pumps for application flexibility including two part mixing and dispense applications such as adhesives, solder paste, underfills, conductive adhesive, potting compounds, and more.

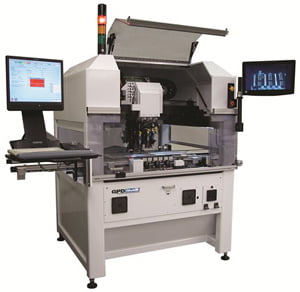

Dispense Systems Equipment, Machines inline model
Inline model

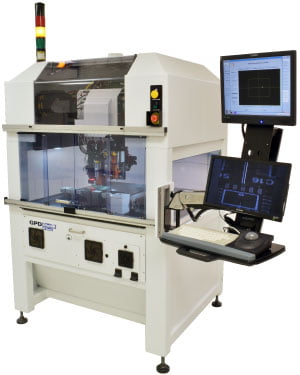

Dispense Systems Equipment, Machines stand-alone model
Stand-alone model

DS Series system construction is based on a welded steel frame carefully manufactured for high accuracy manufacturing. During assembly, the system is subjected to a number of alignments and set ups processes to ensure the highest level of precision. After manufacturing, systems undergo a contour mapping process for proof of accuracy.

Heated Applications & Large PCB or Pallets on Large Fluid Dispensing Platform

For applications requiring heat, the work table may be heated to 200° C (392° F). All three zones of a conveyor may be heated via convection or conduction. Pumps may also be configured with heat for fluids that perform better in an elevated temperature environment. Convection heating is very versatile and not subject to bottom-side board geometry.

For more information, contact us at request@gpd-global.com or call +1.970.245.0408 to learn about our Large Format Liquid Dispensing System for PCB and pallet dispensing.
