Automated Dispensing System

Automated Dispensing System for Large PCB or Pallet Applications Requiring Large Board Processing / Versatility

Our DS Series automated dispensing systems are robust, large format platforms that handle all types of applications with ease. Ideal for dispense applications utilizing adhesive, solder paste, conductive adhesive, potting compounds, and more.

Provides the utmost in versatility and capability. It handles up to 3 different dispense pumps. This system toggles between each pump in a single program. DS Series systems are compatible with all GPD Global dispense pumps.

A DS Series highlight – its large work area, up to 24″ x 24″ (610 mm x 610 mm), the largest standard platform in the industry. Available as standalone or inline, it can be configured to meet your production needs. Standalone systems are configured with a flat worktable and board crowders that hold product to a registered location. For additional support, work table may have vacuum ports or support custom fixturing. Inline configurations include an Entrance, Work Area, and Exit zone. Each zone is configured with a board stop and product present sensors to track product through the system.

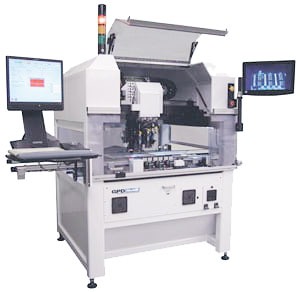

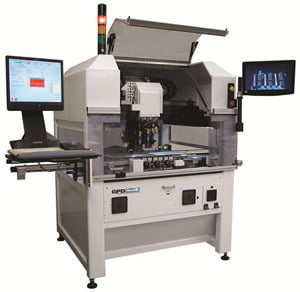

Inline model of Dispense Systems Equipment, Machines
Inline model

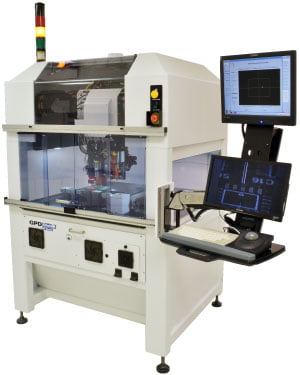

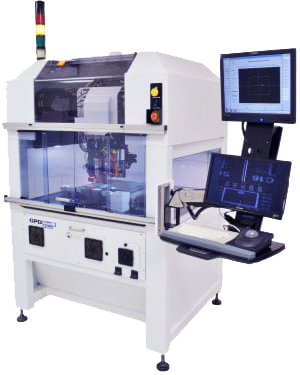

stand-alone DS Series model
Stand-alone model

For applications requiring heat, the work table on standalone systems may be heated to 200° C. All three zones of a conveyor inline configuration may be heated via convection or conduction. Pumps may also have heat applied for fluid that perform better under an elevated temperature environment. Convection heating is very versatile and not subject to bottom-side board geometry.

forced air work area on Dispense Systems Equipment, Machines
Forced Air Work Area

DS Series dispense system construction is based on a welded steel frame that has been carefully manufactured for high accuracy manufacturing. During assembly the system is subjected to a number of alignments and setups to ensure highest level of precision. After manufacturing, systems undergo contour mapping process for final touches on positioning capability.

All DS-Series models are well suited for multi-functional applications combining dispensing with light assembly / pick & place applications.

A host of options are available to expand the capability of your dispense system.

Automated Dispensing System Work Area Size

24″ x 24″

The DS Series automated dispensing system has largest standard work area in the industry of 24″ x 24″ (610 mm x 610 mm). Available in either an inline or stand-alone configuration.

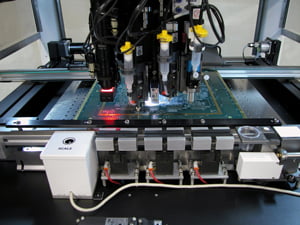

inline work area
Inline Work Area
stand-alone work area
Standalone Work Area
close-up of stand-alone work area
Standalone Work Area – close up

Standard Features of the Automated Dispensing System

  • Inline and Stand-alone Models
  • Inline model is SMEMA compatible
  • Up to 3 Pump Stations
  • Positioning Accuracy ± 0.0015″ (± 0,0381 mm)
  • Repeatability ± 0.0006″ (± 0,0152 mm)
  • Automatic Vision Alignment System (GPD Cyclops system) and Pattern Recognition Trainer
  • Red/Blue Illuminator
  • Needle Cleaner
  • Backlit Auto Calibration Station for automatic X,Y,Z needle calibration
  • Station 1 Taper-Lock Mounting Hardware
  • Easy Programming of dots, lines, fills, arcs, etc. through GPD Global FLOware Operating Software
  • TCP/IP Network Ready
  • Welded Steel Frame
  • Second Internal Hard Drive for Backups
  • Interior Lighting
  • Interlocked Safety Barriers for Operator Safety
  • X-Y-Z Brushless Servo Motors with Precision Ball Screws
  • Linear Speed up to 20 inches/second (508 mm/second)
  • 3-Color Status Light Tower – Red, Amber, Green
  • Pentium PC and Color, Flat Panel Monitor
  • Easy Access Electronics Drawer
  • Real-Time Editor while system is in production
  • Start Up & Leveling Kit
  • 1 USB copy of DS Series Documentation for Installation, Operation, and Maintenance
  • CE Declaration of Conformity
  • 115 VAC 60 Hz or 230 VAC 50 Hz

Automated Dispensing System Add-On Options

  • Real Time Process Control (FPC)
    Maximizes pump dispense capability by constantly monitoring and adjusting pressure of fluid entering the pump to maintain optimal pump operating conditions. Compensates for variations in flow from fluid reservoir into pump – from full to empty. Also instantaneously adjusts to maintain constant feed during dispense operations of dots, lines, and area fills. Real time adjustment picks up where weight scales leave off.
  • Process View Camera
    Displays dispense process at dispense tip on a separate monitor. Camera can look at all three tips.
  • Process Calibration Weight Scale
    Mass Flow Calibration – calibrates a pump to a programmed weight.
  • Additional Needle Cleaners
    To avoid nozzle contamination for multi-materials / liquid processes.
  • Tandem Operation
    To increase throughput for products that are consistently spaced in an array or carrier. A tandem mount holds two pumps of the same type at an adjustable pitch and offset. Both pumps dispense at the same time during a process. For product with an odd number of units, a single pump can be turned on/off during process.
process view camera
Process View Camera (side view)
ClearVU Vision
ClearVu™ Vision

Automated Dispensing System Pump Compatibility


Pumps / Accessories

Paste, Glue, Adhesive.

Precision Auger Pump

High speed, low viscosity.

Jetting Pump (NCM5000)

No drip, volumetric repeatability.

Volumetric Pump (PCD)

Real time process control.

Fluid Pressure Control (FPC)
