Cost-Effective Conformal Coating System

Conformal Coating System with Excellent Repeatability

GRAND JUNCTION, CO USA ― November 2017 ― GPD Global, manufacturer of high quality precision fluid dispensing systems, conformal coating and component prep systems offers a cost-effective, automated Conformal Coating System (SimpleCoat) with excellent repeatability.

SimpleCoat is a NEW low cost, inline, simple Conformal Coating System with full featured programming making the conformal coating processes quick and easy to set up. It is ideal for selective conformal coating and dispensing applications that require a high level of accuracy & repeatability.

This coating machine is equipped with a robust 3-axis motion platform that, in the base configuration, includes a spray valve and a needle valve. An optional volumetric pump may be used in place of the needle valve.

SimpleCoat works with a customer-supplied laptop computer.  Programming of this conformal coating system is easy and can be done either by manually teaching a program or by using a JPG image. All dispense and motion parameters can be easily altered with the easy-to-use interface. Various shapes, patterns, and areas can also be programmed.

This video demonstrates Spray and Dispense process with HumiSeal 1B31.

Spray and Masking Process

Standard Features of the SimpleCoat Conformal Coating System base model:

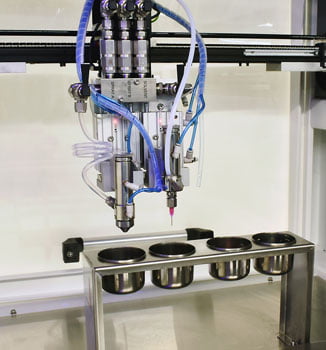

spray valve and needle valve
Spray Valve & Needle Valve.
  • Reliable XYZ Motion System
  • Full-featured Programming, including Teach from .JPG
  • Inline Operation with SMEMA Communication
  • Spray and Needle Valve
  • Purge and Solvent Cups
  • Stainless Steel Surfaces
  • Bottom Side Fume Extraction with Exhaust Flow Sensor
  • Two 300 ml Cartridges for Fluid Feeding
  • Internal Black Light for Coating Inspection
  • Keyed Maintenance Mode
  • Light Tower

You can also enhance the Conformal Coating process with options:

  • Low Level Material Sensor.
  • Large Volume Reservoir
  • Stand-alone Configuration
  • Volumetric Pump
  • Multiple Reservoirs


GPD Global is an equipment manufacturer of high quality, precision, automated fluid dispensing, conformal coating & component-prep systems. The company is an international, state-of-the-art equipment supplier for the PCB assembly and semiconductor industries. We design and manufacture a wide variety of Automatic Fluid Dispensing & Conformal Coating Systems. We also manufacture SMT Cover Tape Peel Tester and Component Prep equipment for Thru-Hole applications.
