Automated Dispensers

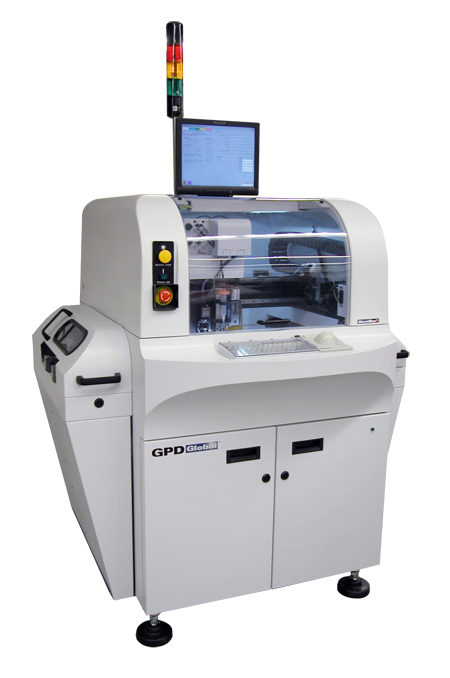

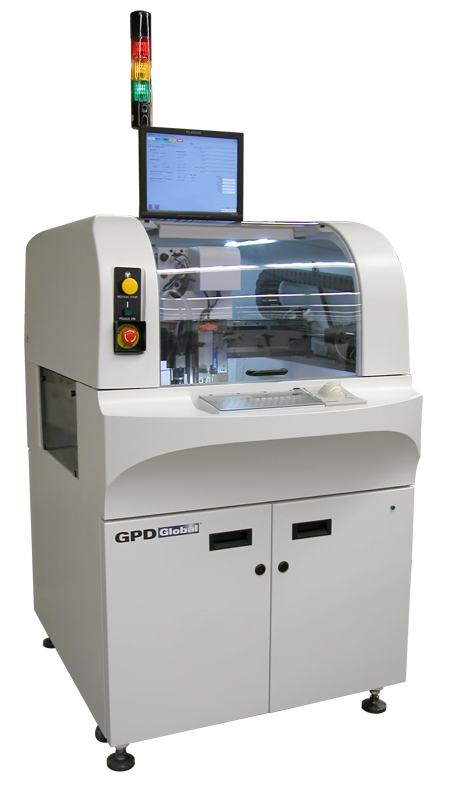

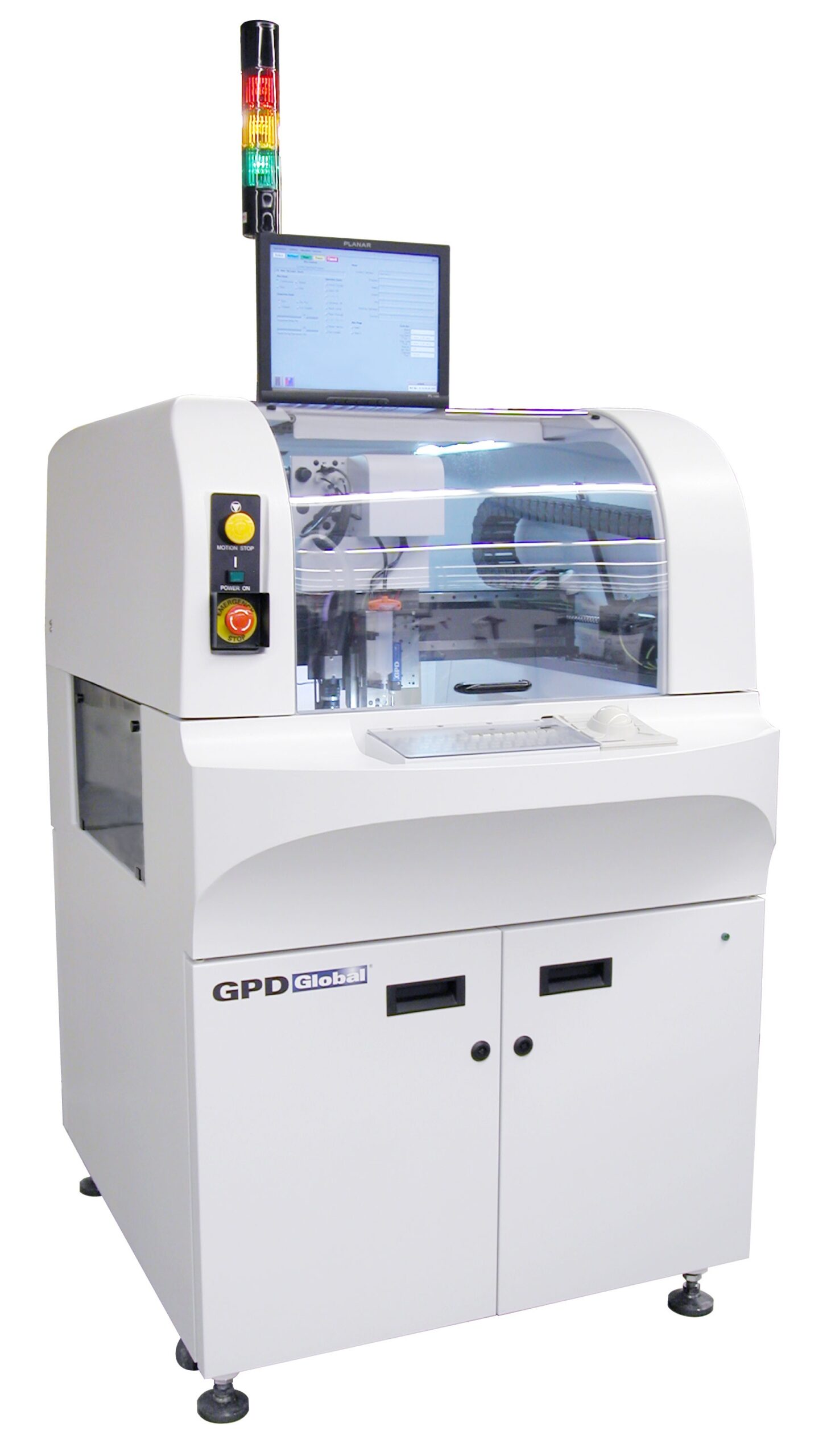

MAX Series High Precision Automated Dispensers Available for Heated & Non-Heated System Applications

The MAX Series is the premier line of GPD Global high precision automated dispensers. These automated dispenser machines can process a wide variety of fluid dispensing applications:

At the heart of all MAX Series automated dispensing systems is a solid unibody with molded frame. These machines yield outstanding stability and unparalleled accuracy. Other standard features include:

Each MAX Series automated dispense system has an XY positional capability of ±25 µm (±0.001″) and Z axis repeatability of 7 µm (0.0003″). Use a MAX Series dispense system to expand your process capability to new horizons. Process development is easy with a system configured with the Process View Camera. The camera enables the operator to view the dispense process on an external monitor.

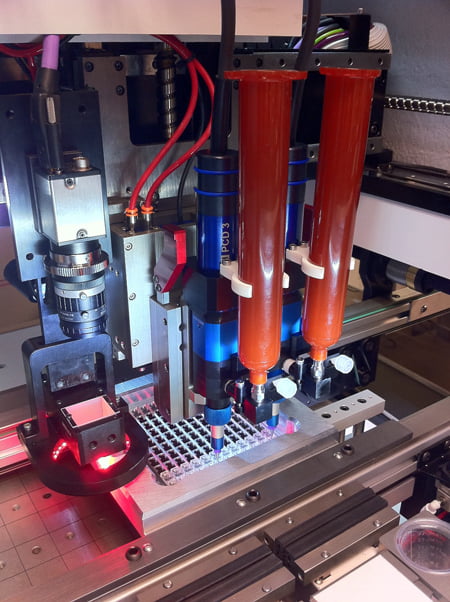

tandem pumps
Tandem Pumps

A work area of 358 mm x 305 mm (14.1″ x 12″) is available when a system uses a single pump. To handle a variety of applications and complex processes, configure a MAX Series system with up to two different dispense pumps. The system automatically changes between pumps during a process run. The addition of a second dispense station reduces the system work area to 305 mm x 305 mm (12″ x 12″). All components of the system – the camera, both dispense stations, and the surface sensor – can reach the full extent of this work area.

To increase throughput, configure your system as a tandem pumps system. Two pumps of the same type will dispense on the product in tandem.

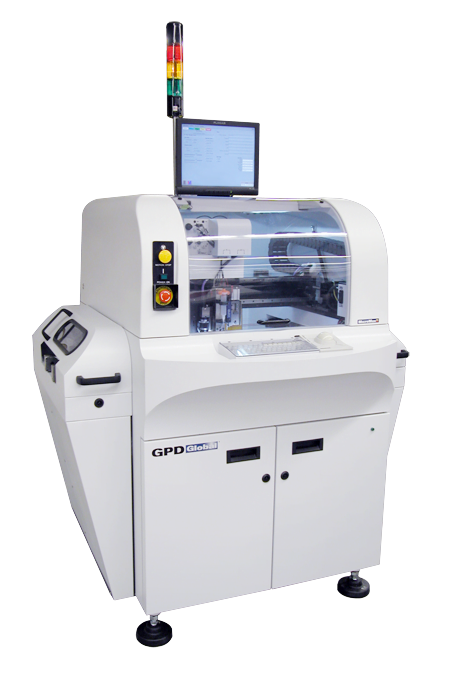

Automated Dispensers: High Precision Models

Select the MAX Series model that meets your production requirements:
